The electrothermal constant temperature incubator is a constant temperature incubator suitable for scientific research and industrial production departments such as medical and health, pharmaceutical industry, biochemistry and agricultural science for bacterial cultivation, fermentation and constant temperature testing.
1. High precision, high efficiency, safety, wide range
2. Vertical double duct air sleeve
3. Convenient operation, constant value operation, regular operation and automatic stop

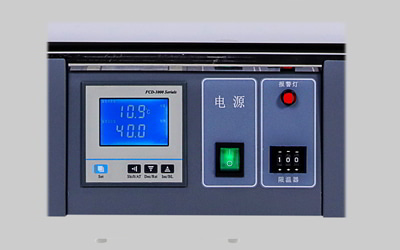

4. Special function key to realize temperature setting
5. Auxiliary menu, realize over rising alarm, deviation correction and menu locking
6. Forced air supply by centrifugal turbine makes the temperature more uniform
7. Forced fan cooling air intake structure, so that the maximum operating temperature of the fan <50 ℃, long-term and long-life operation
8. LCD multi-data full-screen operation display, power failure memory, power failure compensation
9. Over-rise alarm, menu lock, over-rise prevention
Model | LPL-30BE | LPL-45BE | LPL-65BE | LPL-125BE | |
Mode | Double duct forced convection | ||||
Performance | Temperature control range | RT+5-80℃ | |||
Temperature resolution | 0.1℃ | ||||
Constant temperature fluctuation | ±0.5℃ | ||||
Temperature uniformity | ±1℃ | ||||
Constitute | Interior Material | stainless steel | |||
Exterior Material | Cold rolled steel sheet, surface coating | ||||
Thermal insulation material | Polyurethane | ||||
Heater | Stainless steel heating pipe | ||||
Rated power | 0.15kw | 0.25kw | 0.50kw | 0.6kw | |
Exhaust vent | Inner diameter 28mm*1, located at the top | ||||
Controller | Temperature control mode | Two-line LCD PID | |||
Temperature setting mode | Touch the button to set | ||||
Temperature representation | Measuring temperature display: LCD upper position; | ||||
Setting temperature display: LCD bottom position | |||||
Timer | 0~9999min (with timing waiting function) | ||||
Operation function | fixed value operation, timing operation, automatic stop | ||||
Program mode | Optional | ||||
Additional functions | Deviation correction, menu key locking, power failure compensation, power failure memory | ||||
Sensor | PT100 | ||||
Safety device | Over rise alarm and overload protection | ||||
Specifications | Internal dimensions (mm) | 310*310*310 | 350*350*350 | 400*360*450 | 500*450*550 |
External Dimensions (mm) | 445*487*671 | 485*527*722 | 534*538*822 | 634*628*922 | |
Package size | 560*560*830 | 600*600*857 | 670*620*960 | 760*700*1060 | |
Internal volume | 30L | 45L | 65L | 125L | |
Diaphragm bearing | 15kg | ||||
Number of shelves | 6 | 7 | 9 | 13 | |
Shelf spacing | 35mm | ||||
Rated current | AC220V/0.7A | AC220V/1.1A | AC220V/2.3A | AC220V/2.7A | |
Net / gross weight | 37/32 | 37/43 | 43/49 | 60/66 | |
Accessories | Partition frame | 4 | |||
Shelf | 2 | ||||
Configuration can be increased | Shelf, RS485 interface, printer, recorder, external communication, remote control, Program temperature controller, wireless SMS alarm, U disk data storage | ||||
