OVERVIEW
This equipment mainly destroys cell protoplasm through oxidation and causes the death of microorganisms, so all microorganisms can be killed within a certain heating time.
LGX Series Hot Air Sterilization Box
LGX Series
The use of high temperature and dry heat has the effects of oxidation and protein denaturation on microorganisms, and poisoning caused by dielectric concentration.
Download
DETAILS
![LGX Series Hot Air Sterilization Box detail - Multi-function control panel]()

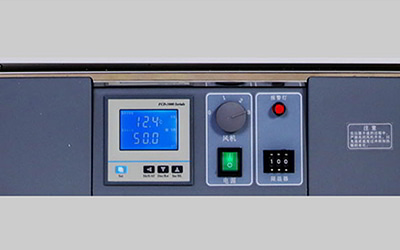

- 1. Multi-function control panel
![LGX Series Hot Air Sterilization Box detail - Insulated safety door]()
- 2. Insulated safety door
![LGX Series Hot Air Sterilization Box detail - Multifunctional safety lock]()
- 3. Multifunctional safety lock
![LGX Series Hot Air Sterilization Box detail - Heating curve]()

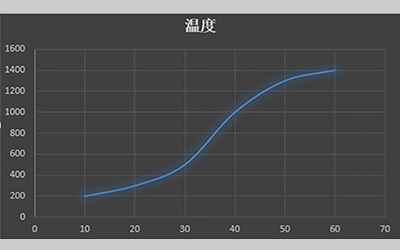

- 4. Heating curve
FEATURES
1. Rapid, safe and reliable sterilization.
2. Convenient operation, fixed value operation, timing operation and automatic stop.
3. Dedicated function keys realize temperature setting.
4. Auxiliary menu, realize over-rise alarm, deviation correction, and menu lock.
5. Vertical double air duct air jacket, turbo centrifugal forced air supply, more uniform temperature.
6. Forced fan cooling air intake structure, so that the maximum working temperature of the fan is less than 50℃, and it can run for a long time and long life.
7. Patent number: ZL201230310211.7/201320059701.3
8. LCD multi-data full-screen operation display, power failure memory, power failure compensation
9. Over-rise prevention
SPECIFICATIONS
Model | LGX30B/LGX30BE | LGX45B/LGX45BE | LGX65B/LGX65BE | LGX125B/LGX125BE | |
Method | double air duct forced convection | ||||
Performance | Operating temperature range | RT+10-300℃ | |||
Temperature resolution | 0.1℃ | ||||
Temperature fluctuation | ±1℃ | ||||
Temperature distribution accuracy | ±2.5℃ | ||||
Composition | Interior | stainless steel | |||
Exterior | cold-rolled steel plate, surface chemical-resistant coating | ||||
Thermal insulation material | aluminum silicate fiber | ||||
Heater | stainless steel heating tube | ||||
Rated power | 0.8kw | 1.2kw | 1.6kw | 2.3kw | |
Exhaust port | inner diameter 28mm*1, top | ||||
Controller | Temperature control mode | B Type: digital tube dual-row PID | |||
Temperature setting method | touch four buttons to set | ||||
Temperature display method | B Type: measured temperature display: 4-digit digital upper display; set temperature display: 4-digit digital lower display | ||||
Timer | 0-9999 minutes (with timing waiting function) | ||||
Operation function | fixed value running, timing running, automatic stop | ||||
Program mode | optional | ||||
Additional functions | deviation correction, menu button lock, power failure compensation, power failure memory, speed control fan（BE Type: over-rise preventer) | ||||
Sensor | Pt100 | ||||
Safety device | over-rise alarm (BE Type: over-rise preventer) | ||||
Specifications | Internal dimensions (W * D * H)(MM) | 310*310*310 | 350*350*350 | 400*360*450 | 500*450*550 |
External dimensions (W * D * H)(MM) | 445*487*671 | 485*527*722 | 534*538*822 | 634*628*922 | |
Outer packaging size (W * D * H)(MM) | 560*560*830 | 600*600*857 | 670*620*960 | 760*700*1060 | |
Inner volume | 30L | 45L | 65L | 125L | |
Shelf load-bearing capacity | 15 kg | ||||
Number of clapboard layers | 6 | 7 | 9 | 13 | |
Space between partitions | 35mm | ||||
Power supply (50/60Hz) rated current | AC220V/3.6A | AC220V/5.5A | AC220V/7.2A | AC220V/10.5A | |
Net weight/Gross weight | 37/32kg | 37/43kg | 43/49kg | 60/66kg | |
Accessories | Partitions | 2 pieces | |||
Partition shelf | 4 pieces | ||||
Configurations can be added(BE Type) | partition, RS485 interface, printer, recorder, external communication, remote control, program temperature controller, unlimited SMS alarm, U disk data storage. | ||||
