The Mold incubator applicable to environmental protection, health and epidemic prevention, drug supervision, agricultural and livestock, aquatic products and other scientific research, colleges and production departments. It is a special thermostat for water body analysis and BOD determination, bacteria, mold, microbial culture, preservation, plant cultivation, and breeding experiments.
1. Independent humidification for humidity control

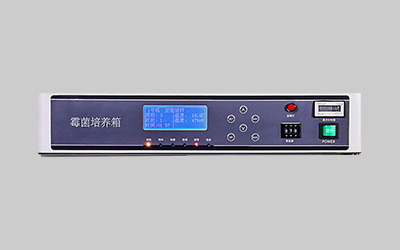

2. LCD multi data full screen display, power failure memory, power failure compensation
3. Convenient operation, constant value operation, regular operation and automatic stop
4. Special function key to realize temperature setting
5. Auxiliary menu, realize over rising alarm, deviation correction and menu locking
6. Forced air supply by centrifugal turbine makes the temperature more uniform
7. Power off protection, parameter memory and call recovery
8. Compressor overload protection
Functionality
1. LCD 30 segment program control, repeated step, step operation
2. Loop self diagnosis, sensor fault alarm, upper and lower line over temperature alarm
3. Intelligent defrosting
4. Monitor the timing
Model | LJX-70B/ LJX-70BX | LJX-150B/ LJX-150BX | LJX-250B/ LJX-250BX | |
Mode | Forced convection | |||
Performance | Temperature control range | No humidification: 0-65℃ With humidification: 10-65℃ | ||
Temperature resolution | 0.1℃ | |||
Constant temperature fluctuation | High temperature： ±0.5℃ Low temperature： ±1℃ | |||
Temperature uniformity | ±1℃ | |||
Humidity control range | 60%-90%RH | |||
Humidity fluctuation | ±5%-8%RH | |||
Constitute | Interior decoration | Mirror stainless steel | ||
Exterior decoration | Cold rolled steel sheet, surface coating | |||
Thermal insulation material | polyurethane | |||
Heater | Stainless steel heating pipe | |||
Rated power | 0.7kw | 1.0kw | 1.4kw | |
compressor | Air cooled hermetic compressor | |||
Cryogen | R134A | |||
Humidity control mode | Type B: manual; type BX: automatic | |||
Defrosting structure | Type B: manual; type BX: automatic | |||
Lead hole | One with inner diameter of 52mm | |||
Controlled external power supply | External one | |||
Ultraviolet sterilization | YES | |||
Controller | Temperature control mode | Type B: Single Segment LCD PID; type BX: 30 Segment LCD program | ||
Temperature setting mode | Touch the button to set | |||
Temperature representation | Measuring temperature display: LCD upper display; setting temperature display: LCD lower display | |||
Timer | 0-9999 (with timing waiting function) | |||
Operation function | Type B: fixed value operation, timing operation, automatic stop | |||
BX type: program running | ||||
Program mode | Type B: optional; type BX: standard | |||
Additional functions | Type B: deviation correction, menu key locking, power failure compensation, power failure memory | |||
Type BX: there are also over rising preventer, cumulative timing, loop self diagnosis and intelligent defrosting | ||||
Sensor | Pt100 | |||
Safety device | Type B: over rise alarm and overload protection; type BX: with over rise preventer and loop self diagnosis | |||
Specifications | Internal dimensions (mm) | 420*350*500 | 500*400*750 | 500*500*950 |
Dimensions (mm) | 570*560*1073 | 640*620*1260 | 640*710*1463 | |
Outer package size | 720*720*1120 | 790*770*1380 | 800*870*1580 | |
Internal volume | 70L | 150L | 250L | |
Diaphragm bearing | 15kg | |||
Number of diaphragm layers | 5 | 9 | 12 | |
Diaphragm spacing | 60mm | |||
Rated current | AC220V/2.3A | AC220V/3.6A | AC220V/5.5A | |
Net / gross weight | 65/83 | 86/106 | 100/127 | |
Accessories | Partition | 2 | ||
Partition frame | 4 | |||
Configuration can be increased | Diaphragm, RS485 interface, printer, recorder, external communication, remote control, wireless SMS alarm, U disk data storage | |||
