The LHL series of electric heating constant temperature drying oven adopts LCD multi-data operation display, with power failure memory, compensation function, and overheating alarm and prevention function. The operating temperature is room temperature +10~300 degrees Celsius, the PID temperature is accurately controlled and the temperature distribution accuracy is extremely high at +-3.5%, and the volume is 30L, 45L, 60L, 125L, etc. to meet different needs.
1. High precision, high efficiency, safety and wide range.
2. Convenient operation, fixed value operation, timing operation and automatic stop.
3. Dedicated function keys realize temperature setting.
4. Auxiliary menu, realize overheating alarm, deviation correction, and menu lock.
5. LCD multi-data full-screen operation display, power failure memory, power failure compensation
6. overheating alarm, menu lock, overheating prevention.
Model | /LHLL-30BE | LHL-45B /LHLL-45BE | /LHLL-65BE | LHL-125B /LHLL-125BE | |

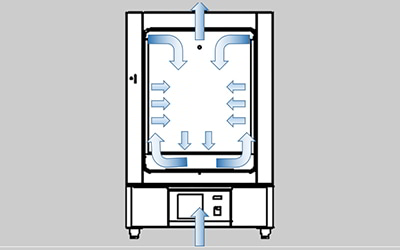

Mode | Natural convection | ||||
Performance | Temp range | RT+10~300℃ | |||
Temp resolution | 0.1℃ | ||||
Temp fluctuation | +-1℃ | ||||
Temp distribution | +-3.5% | ||||
Constitution | Interior | stainless steel plate | |||
Exterior | cold-rolled steel plate, surface coating with chemical resistance | ||||
Thermal insulation material | aluminum silicate fiber | ||||
Heater | Ni-Cr alloy heating wire OCr27AL7Mo2 | ||||
Rated power | 0.8kw | 1.0kw | 1.5kw | 2.5kw | |

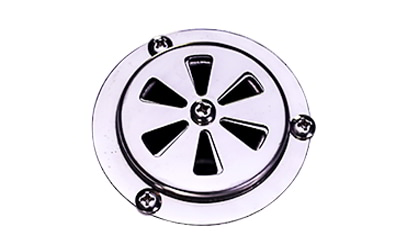

Exhaust port | I.D. 28mm*1, top | ||||

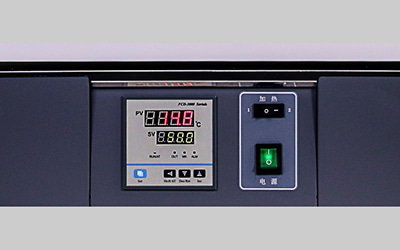

Controller | Temp control mode | B-type: digital tube dual-row PID BE-type:LCD dual row PID | |||
Temp setting method | touch four buttons to set | ||||
Temp display method | B-type: Measuring temp display: 4-digit digital upper; C-Set temp display: 4-digit digital lower | ||||
BE-type: Measuring temp display: LCD upper ; Set temp display: LCD lower | |||||
Timer | 0-9999 minutes ((with timing wait function) | ||||
Running function | fixed value running, timing running, automatic stop | ||||
Program mode | optional | ||||
Additional functions | deviation correction, menu button lock, power failure compensation, power failure memory(BE-type:prevent overheating) | ||||
Sensor | Pt100 | ||||
Safety device | overheating alarm (BE-type:overheating prevention) | ||||
SPEC | Internal dimensions(W*L*Hmm) | 310*310*310 | 350*350*350 | 400*360*450 | |
External dimensions(W*L*Hmm) | 445*487*671 | 485*527*722 | 534*538*822 | 634*628*922 | |
Outer packaging size(W*L*Hmm) | 570*570*820 | 600*600*857 | 670*620*960 | 760*700*1060 | |
Internal volume | 30L | 45L | 65L | 125L | |

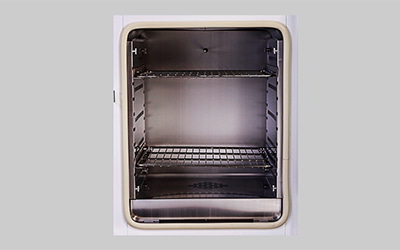

Partition bearing capacity | 15kg | ||||
Partition layers | 6 layers | 7 layers | 9 layers | 13 layers | |
Space between partitions | 35mm | ||||
Power supply(50/60Hz) rated current | AC220/10.5A | AC220/5.5A | AC220/6.8A | AC220/11.4A | |
Net weight/Gross weight kg | 37/32 | 37/43 | 43/49 | 60/66 | |
Accessories | 2 pieces | ||||
Shelves | 4 pieces | ||||
Configuration that can be added | Partition, RS485 interface, printer, recorder, external communication, remote control, program temperature controller, wireless SMS alarm, U disk data storage | ||||
