LGL-B Series Vertical Forced Air Drying Oven

LGL-B Series
The electric blast drying box adopts electric heating method to carry out the blast cycle drying test. The blast drying box blows out hot air through a circulating fan to ensure the temperature balance in the box. This is a commonly used instrument and equipment, mainly used for drying samples, and can also provide the temperature environment required for the experiment. Dry ovens are used in various industries, such as chemical, pharmaceutical, foundry, automotive, food, machinery, etc.
Request QuotationChat Now
  • WhatsApp

    WhatsApp Chat

  • WeChat

    WeChat Chat

Download

DETAILS

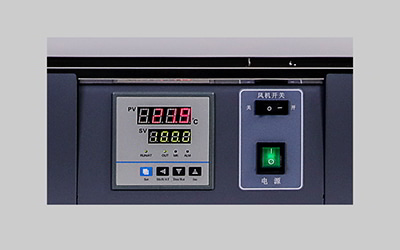

LGL-B Series Vertical Forced Air Drying Oven detail - Multi-function control panel
1. Multi-function control panel

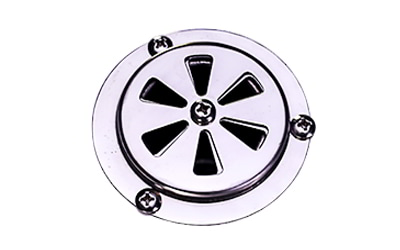

LGL-B Series Vertical Forced Air Drying Oven detail - Vent
2. Vent

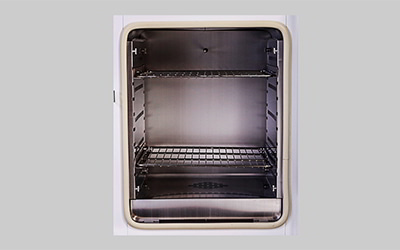

LGL-B Series Vertical Forced Air Drying Oven detail - Design of multi-layer insulation board in multi-layer space
3. Design of multi-layer insulation board in multi-layer space

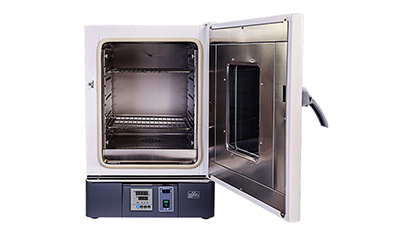

LGL-B Series Vertical Forced Air Drying Oven detail - Double-layer insulated door design
4. Double-layer insulated door design

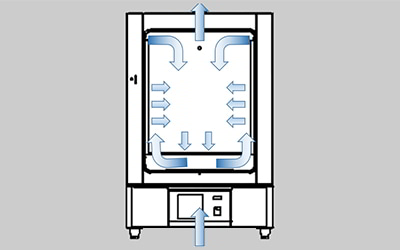

LGL-B Series Vertical Forced Air Drying Oven detail - Vertical double air duct design
5. Vertical double air duct design

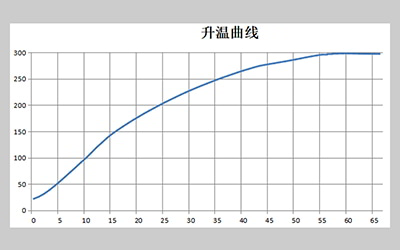

LGL-B Series Vertical Forced Air Drying Oven detail - Heating curve
6. Heating curve

OVERVIEW

This equipment is composed of chamber body, heating system, electrical control system, air supply system, protection system, etc. The box body is made of high-quality cold-rolled steel plate, and the surface is electrostatically powder sprayed. The coating is hard and firm and has a strong anti-rust ability. The studio is made of high-quality stainless steel plates with rounded corners, smooth, smooth, and easy to clean. Between the box body and the working room, the insulation material is filled, which has a good heat preservation function, which effectively guarantees the stability and accuracy of the temperature in the box and the impact on the use environment.

FEATURES

1. High precision, high efficiency, safety, wide range;

2. Convenient operation, fixed temperature operation, timing function, automatic stop;

3. Dedicated function keys for temperature setting;

4. Auxiliary menu, realize over-rise alarm, deviation correction, and menu lock;

5. Vertical double air duct air jacket, turbo centrifugal forced air supply, more uniform temperature;

6. Adjustable speed fan enables light, small, powdery samples to be used;

7. Forced fan cooling air intake structure, so that the maximum operating temperature of the fan is less than 50℃, and it can run for a long time and long life;

SPECIFICATIONS

Model

LGL-30B

LGL-45B

LGL-65B

LGL-125B

LGL-30BE

LGL-45BE

LGL-65BE

LGL-125BE

Cycle Mode

Forced convection

Function

Temp. Range

RT+10-300℃

Temp. Resolution   Ratio

0.1℃

Temp. Motion

±1℃

Temp. Uniformity

±2.5%

Structure

Inner Chamber

Stainless steel;

Outer Shell

Cold rolling   steel electrostatic spraying exterior

Thermal   insulation material

Aluminum silicate   fiber

Heater

Stainless steel heating   tube

Power rating

0.8kW

1.2kW

1.6kW

2.3kW

Exhaust hole

φ28mm*1 at the   back

Controller

Temp. control   mode

B model: Two lines   LED display, PID;

BE model: Two lines   LCD display, PID

Temp. setting   mode

Touch button   setting

Temp. display mode

B model: Two   lines 4 digits LED Digital display:

measuring temp.   on the top and setting temp. on the bottom

BE model: Two   lines LCD Digital display:

measuring temp.   on the top and setting temp. on the bottom

Timer

0-9999min(with   timing wait function)

Operation   function

Fixed temperature   operation, timing function, auto stop.

Program mode

Optional

Additional   function

Deviation   correction, menu button lock, power failure compensation, power-off parameter   memory; BE model in addition: Over-rise preventer, adjustable speed fan

Sensor

Pt100

Safety device

Over temperature   sound-light alarm

Specification

Inner Chamber   size(W*L*H)(mm)

310*310*310

350*350*350

400*360*450

500*450*550

Exterior size   (W*L*H)(mm)

445*487*671

485*527*722

534*538*822

634*628*922

Packing size   (W*L*H)(mm)

570*570*820

600*600*857

670*620*960

760*700*1060

Volume

30L

45L

65L

125L

Shelf number

6

7

9

13

Load per rack

15kg

Shelf space

35mm

(50/60HZ)Current   rating

AC220V/3.6A

AC220V/5.5A

AC220V/7.2A

AC220V/10.5A

NW/GW (kg）

27/32

37/43

43/49

60/66

Accessory

Shelf

2

Shelf frame

4

optional   accessories

Shelf, RS485   interface, printer, recorder, external communication, remote control, program   temperature controller, wireless SMS alarm, U disk data storage
