LHL series desktop electric heating constant temperature drying oven has a cavity volume of 18L, natural convection mode, use temperature room temperature +5~300 degrees Celsius, PID precise temperature control temperature accuracy is +-3.5%..
LWP series desktop incubator has a cavity volume is 18L, natural convection mode, the operating temperature is room temperature +5~65 degrees Celsius, and the PID precision temperature control temperature accuracy is +-2.0%
1. Classic heat transfer method, uniform temperature distribution.
2. Double-layer tempered glass observation window, easy to check the experimental status at any time.
3. Convenient operation, fixed value operation, timing operation and automatic stop.
4. Dedicated function keys realize temperature setting.
5. The auxiliary menu can realize over-rise alarm, deviation correction, and menu lock.
6. Over-rise alarm, menu lock.
Model | /LHL-25AB | LWP-25A /LWP-25AB | |
Mode | Natural convection | ||
Performance | Temp. range | RT+10~300℃ | RT+5~65℃ |
Temp. resolution | 0.1℃ | ||
Temp. fluctuation | +-1℃ | +-0.5℃ | |
Temp. distribution | +-3.5% | +-2.0% | |
Constitution | Interior | A-type:high strength carbon steel plate AB-type:stainless steel plate | |
Exterior | cold-rolled steel plate, surface coating with chemical resistance | ||
Thermal insulation material | aluminum silicate fiber | ||
Heater | Ni-Cr alloy heating wire OCr27AL7Mo2 | ||
Rated power | 0.6kw | 0.18kw | |

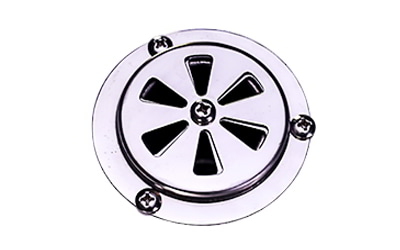

Exhaust port | I.D. 28mm*1, top | ||

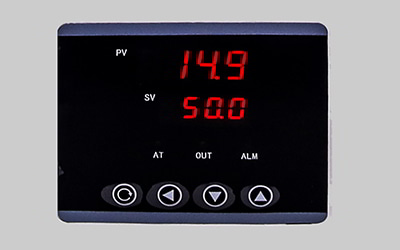

Controller | Temp control mode | digital tube dual-row PID | |
Temp setting method | Tap four buttons to set | ||
Temp display method | Measuring temp display: 3-digit digital upper; Set temp display: 3-digit digital lower | ||
Timer | 0-9999 minutes ((with timing wait function) | ||
Running function | fixed value running, timing running, automatic stop | ||
Program mode | optional | ||
Additional functions | deviation correction, menu button lock, power failure compensation, power failure memory | ||
Sensor | Pt100 | ||
Safety device | Overheating alarm | ||
SPEC | Internal dimensions | ||
External dimensions | 376*464*548(W*L*H)mm | ||
Outer packaging size | 450*490*615(W*L*H)mm | ||
Internal volume | 18L | ||
Partition bearing capacity | 15kg | ||
Partition layers | 6 layers | ||
Space between partitions | 35mm | ||
Power supply(50/60Hz) rated current | AC220/2.7A | AC220/0.8A | |
Net weight/Gross weight | 21/23 kg | ||
Accessories | 2 pieces | ||
Configuration that can be added | Partition, RS485 interface, printer, recorder, external communication, remote control, program temperature controller, wireless SMS alarm, U disk data storage. | ||
